Lugar de origem: | Província de Shandong, China |
---|---|
Marca: | SH |
Certificação: | ISO9001 |
Número do modelo: | QT2000, QT3000, QT4000 |
Quantidade de ordem mínima: | 1 guarnição de madeira do GRUPO considerou |
Preço: | USD2800-6900/SET |
Detalhes da embalagem: | embalagem de madeira do quadro da pálete ou do ferro |
Tempo de entrega: | dentro de 10 dias |
Termos de pagamento: | T/T, Western Union |
Habilidade da fonte: | 100 conjuntos/conjuntos por mês |
Nome: | Serra da guarnição | Altura máxima da serra: | 100mm |
---|---|---|---|
Comprimento vendo máximo: | 4000mm ou como necessidades do cliente | diâmetro circular da lâmina: | 300 mm |
Principal principal: | 3kw x 2, 3kw x 3, 3kw x 4sets ou como necessidades do cliente | Diâmetro do eixo principal: | 30mm |
ALIMENTAÇÃO: | Automático | Comprimento de corte: | adjusable |
Garantia: | 1 ano | Serviço pós-venda: | Suporte técnico em vídeo, peças de reposição |
Solid Wood Cut-Off Saw: Make Precise Cuts, Minimize Waste, and Boost Productivity
For woodworkers and builders, achieving clean, precise cuts in solid wood is essential for professional results and efficient material use. The solid wood cut-off saw is specifically engineered to deliver this core benefit, transforming how you handle lumber and boards by combining exceptional accuracy with robust power to significantly reduce material waste and save valuable time on every project.
Technical data:
Multi blades cutting off circular saw - Trim Saw | |||
Model | QT2000 | QT3000 | QT4000 |
Cutting height | 100mm | 100mm | 100mm |
Cutting width | 2000mm | 3000mm | 4000mm |
Circular blade diameter | 300mm | 300mm | 300mm |
Main motor power | 3kw x2 | 3kw x3 | 3kw x4 |
weight | 620kgs | 820kgs | 1020kgs |
Overall size | 3200x1800x1150mm | 2200x1800x1150mm | 4800x1800x1150mm |

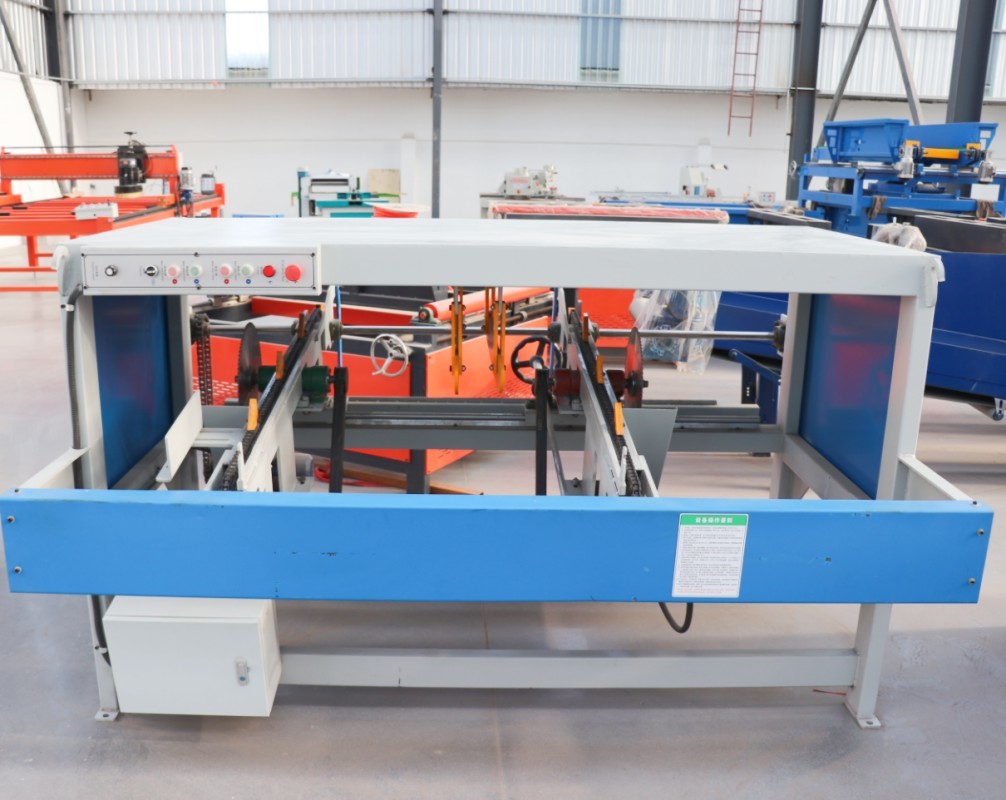

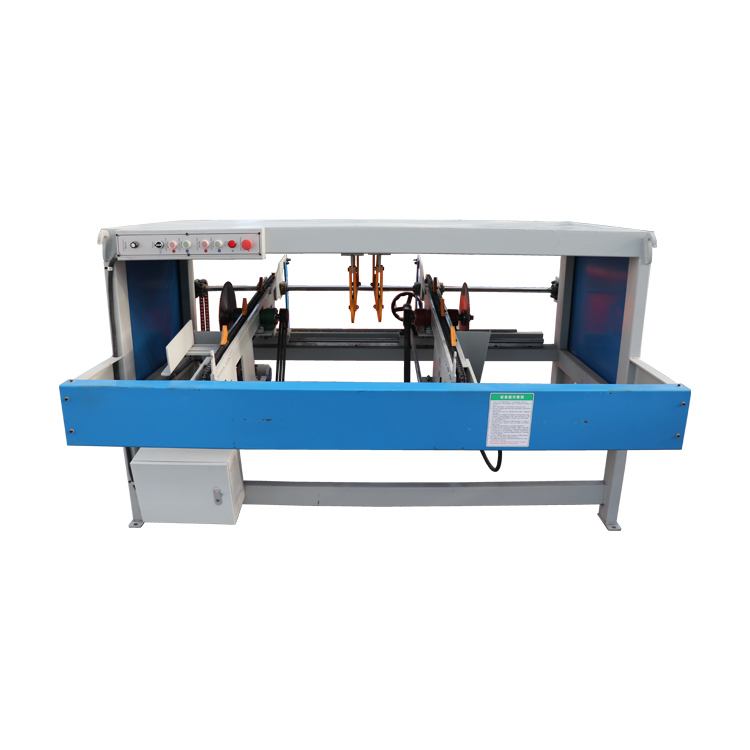

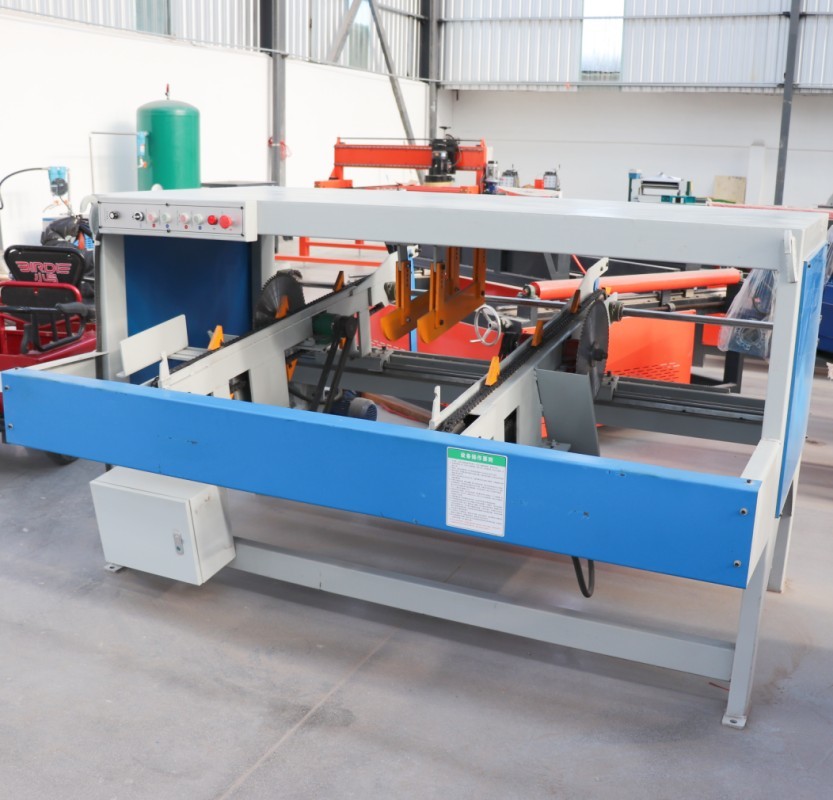

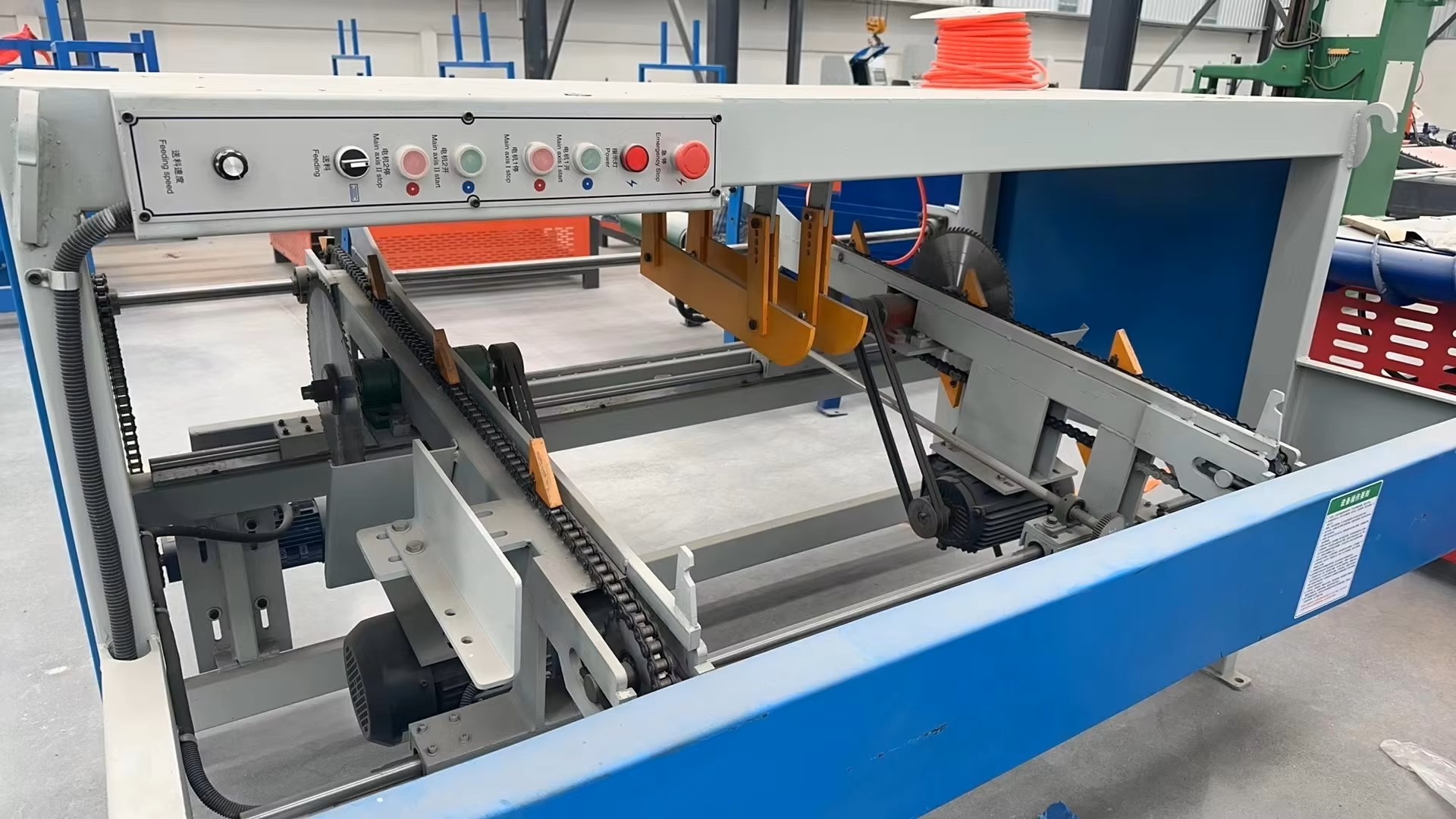

Photos:

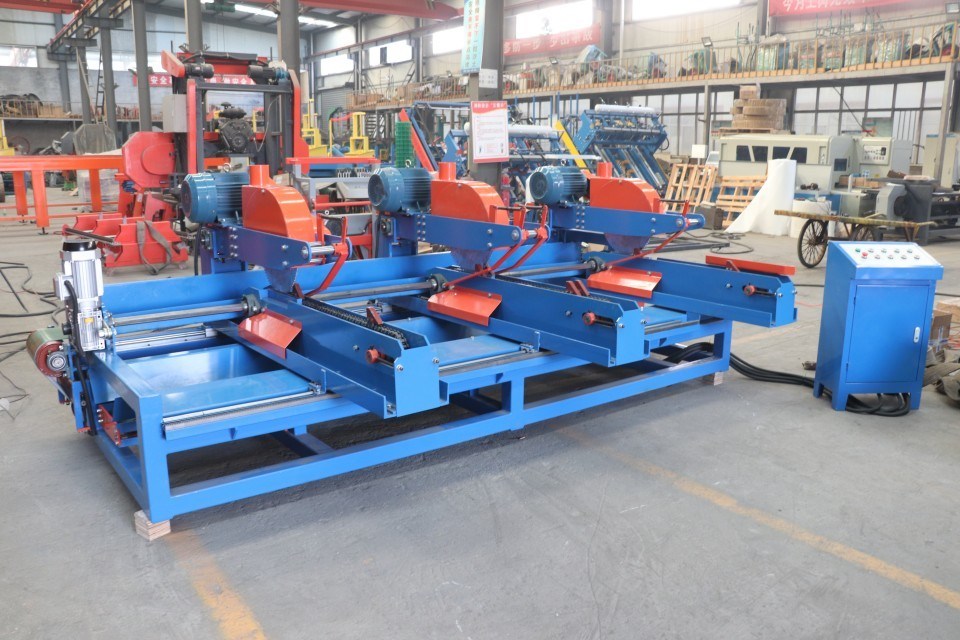

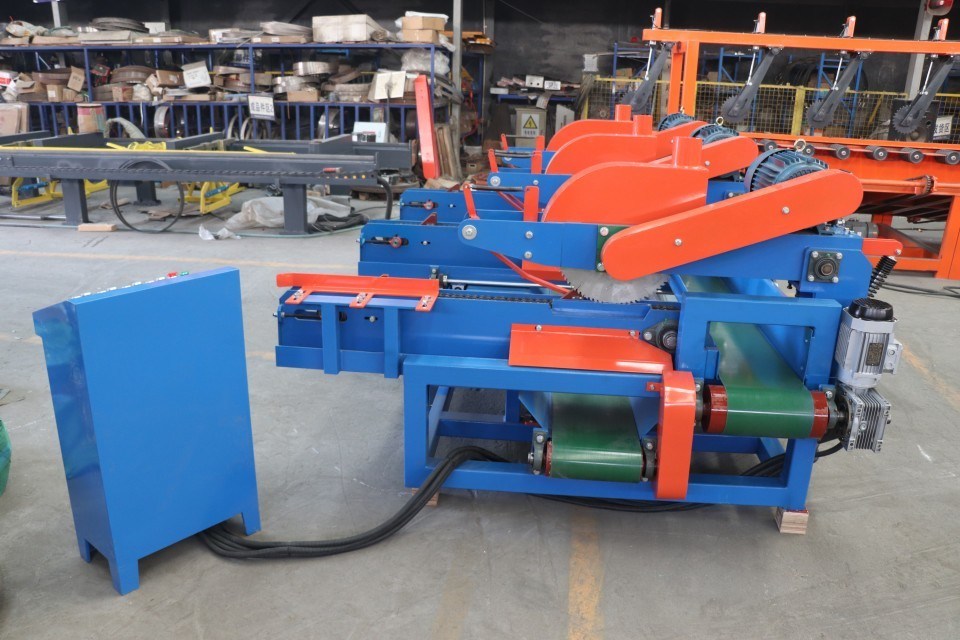

Heavy Duty multi-head cutting off saw
Model | PE-40003 | PE-50004 | PE-60005 |
Cutting Length | 600-4000mm | 600-5000mm | 600-6000mm |
Cutting Thickness | 10-120mm | 10-120mm | 10-120mm |
Cutting Width | 10-400mm | 10-400mm | 10-400mm |
Saw Diameter | 450mm | 450mm | 450mm |
Blade Pieces | 3P | 4P | 5P |
Motor |
7.5kW*3, 0.75kW*2 |
7.5kW*4 , 0.75kW*2 |
7.5kW*5, 0.75kW*2 |
Efficiency | 100m³/8h | 150m³/8h | 200m³/8h |
Weight | 2000kg | 2500kg | 3000kg |
Key Features and Benefits at a Glance:
Powerful Cutting Performance
Equipped with a high-torque motor and a robust circular blade, this saw effortlessly powers through dense hardwoods and thick lumber.
Precision and Accuracy for Flawless Results
Designed for exactness, the saw features clear measurement scales and a secure locking mechanism.
Enhanced Efficiency and Durability
Built with a sturdy base and a reliable fence system, the solid wood cut-off saw stabilizes large pieces of wood for safe, manageable operation.
Answers to Common Questions:
What materials can it cut?
This saw is optimized specifically for solid wood materials, including lumber, boards, and timbers. It is not designed for cutting metal, masonry, or composite materials.
Is it suitable for a construction site?
Absolutely. Its robust design stands up to the demands of a construction site, providing the portable power needed for framing, deck building, and general carpentry.
How does it help reduce waste?
The combination of a sharp, clean-cutting blade and precise measurement systems ensures you get the exact length you need the first time, minimizing costly errors and maximizing the yield from each piece of wood.
Built to Last, Backed by Trusted Support
We stand behind the quality and durability of our solid wood cut-off saw. It is backed by a comprehensive warranty and supported by our dedicated customer service team, ready to assist you should any questions arise.
Ready to experience the difference a professional-grade cut-off saw can make?
Explore our models and find the perfect saw for your workshop today!
